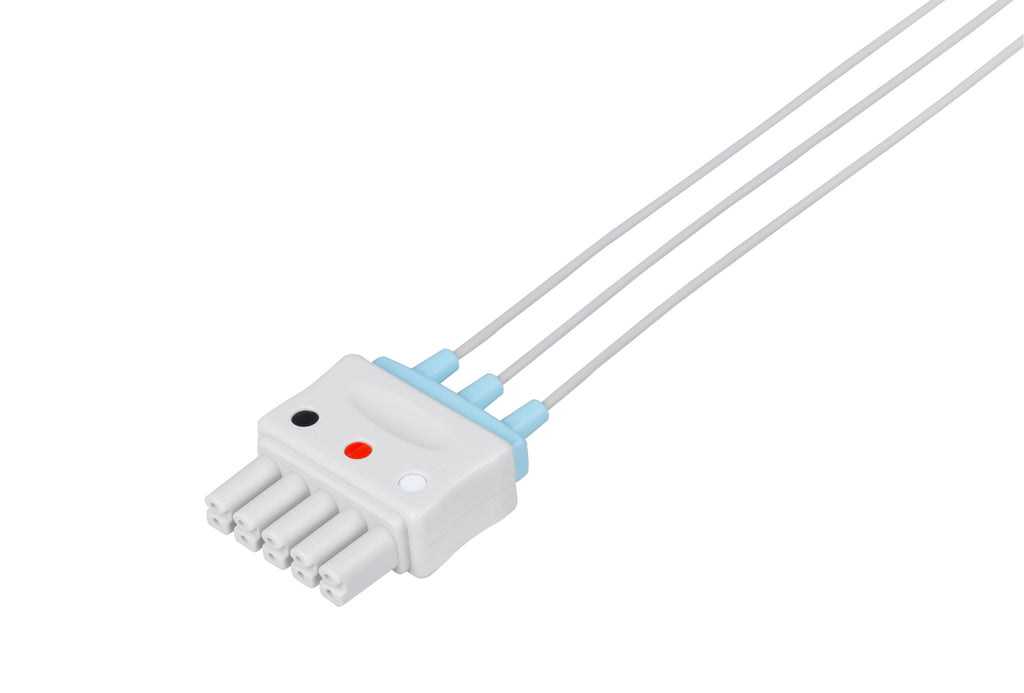

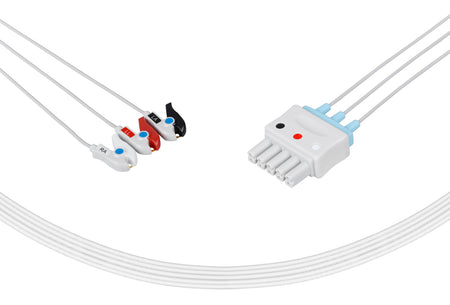

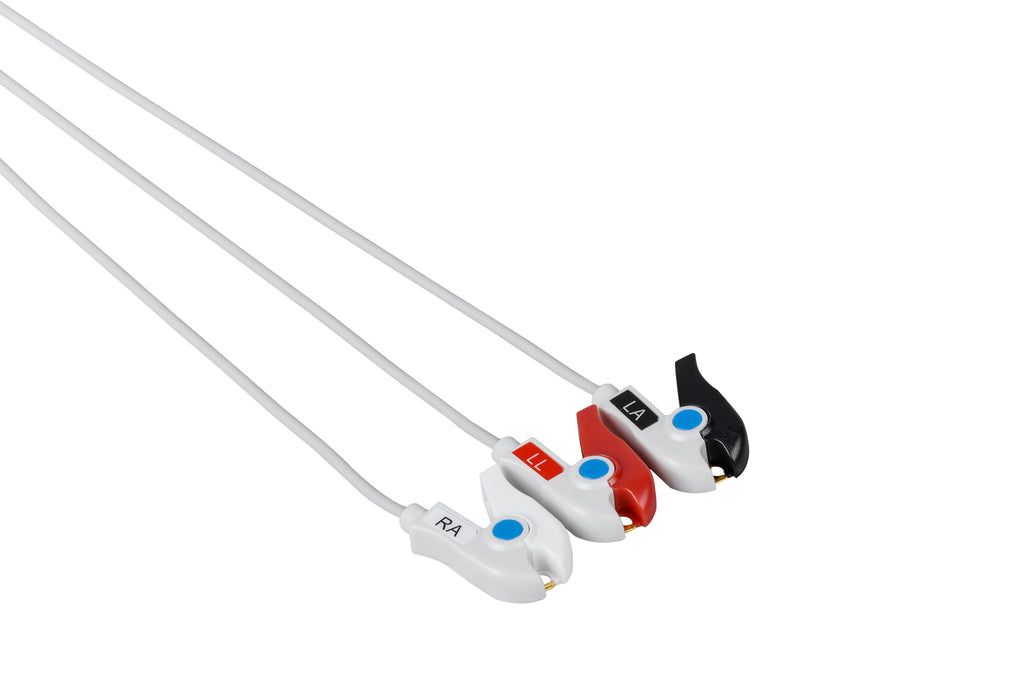

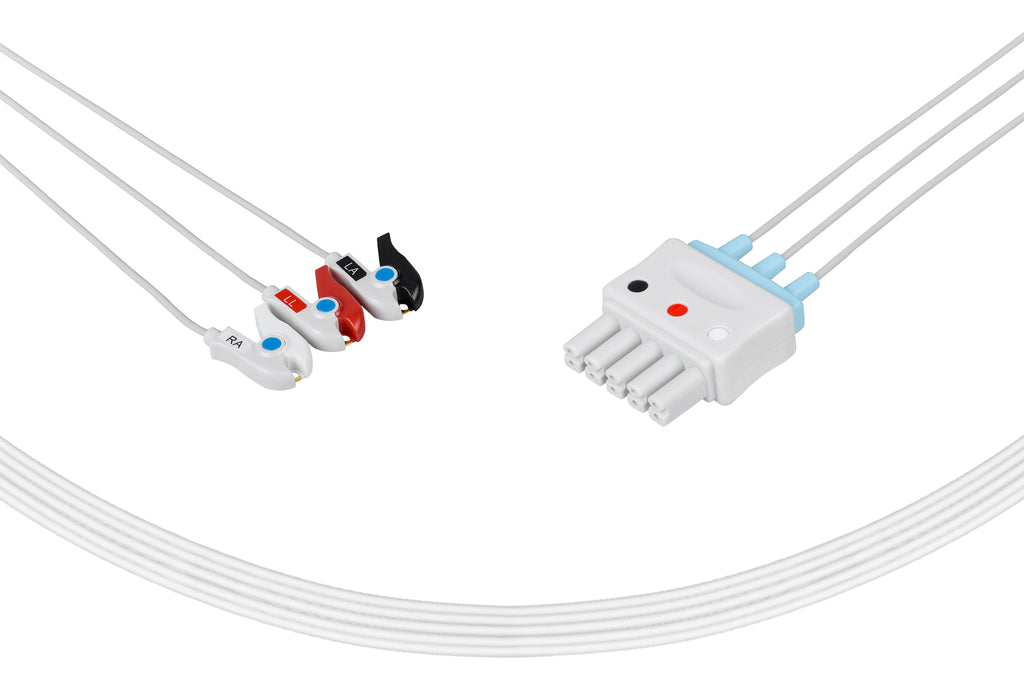

Mindray ECG Leadwire 0012-00-1170, 3 lead, Datascope, Grabber, 0.9m , AHA, Reusable

OEM Part Number Cross References:

Manufacturer

OEM Part #

Mindray > Datascope

0012-00-1170, 0012-00-1262-07 (18 inch), 0012-00-1262-08 (24 inch), 0012-00-1262-09 (40 inch), 0010-30-42726 (24 inch), 0010-30-42731

Compatibility:

Manufacturer

Model

Edan

iM70; iM80

Mindray > Datascope

BeneView T5; BeneView T8; DPM4; DPM5; DPM6; DPM7; Expert; Passport 12; Passport 2; Passport 2LT; Passport 8; Passport XG; PM 5000; PM 6000; Spectrum; Trio; Beneheart D6; iPM-9800; MEC 1000; MPM; PM5000; PM6000; T8; BeneView T1

Mindray

BeneView T5; Beneview T5; BeneView T8; Beneview T8

Penlon InterMed

All

Technical Specifications:

Category

Reusable ECG Lead Wires

Regulatory compliance

CE, FDA, Anvisa, MDSAP, ANSI/AAMI EC53, ISO 10993 series

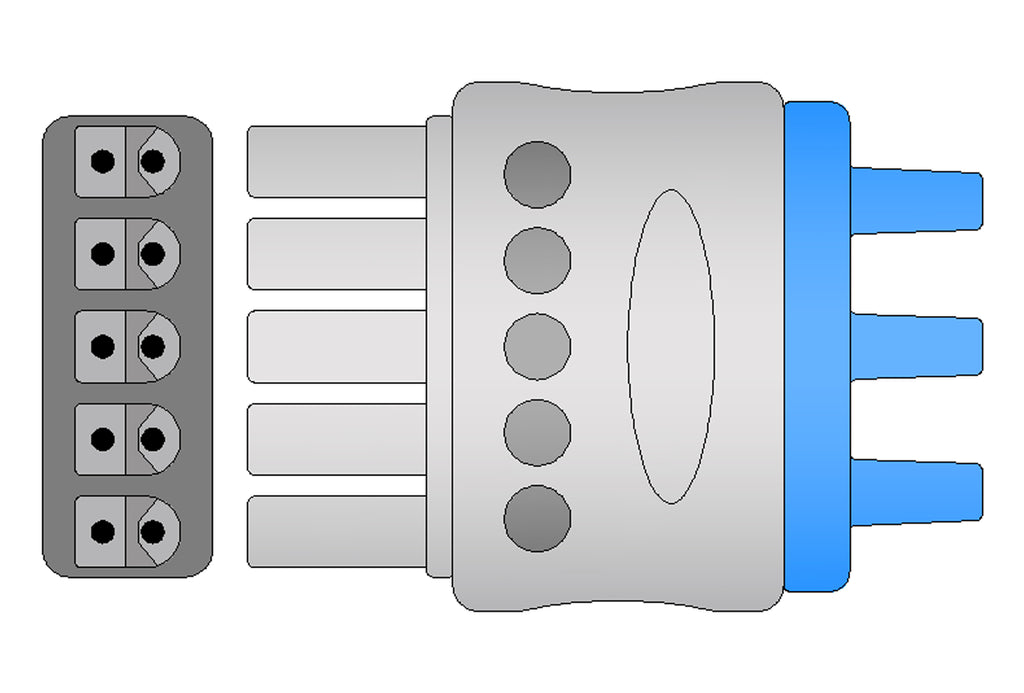

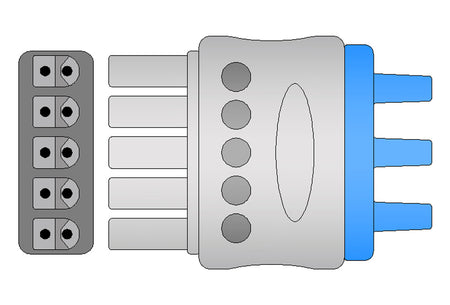

Patient End Connector

Grabber End

Latex-free

Yes

Lead Cable Color

Gray

Lead Cable Diameter

2.6 mm

Lead Cable Length

3ft

Lead Cable Material

TPU Jacket

Color Coding

AHA

Lead Number

3 Leads

Packaging Type

Bag

Packaging Unit

1

Package Weight

Warranty

6 months
