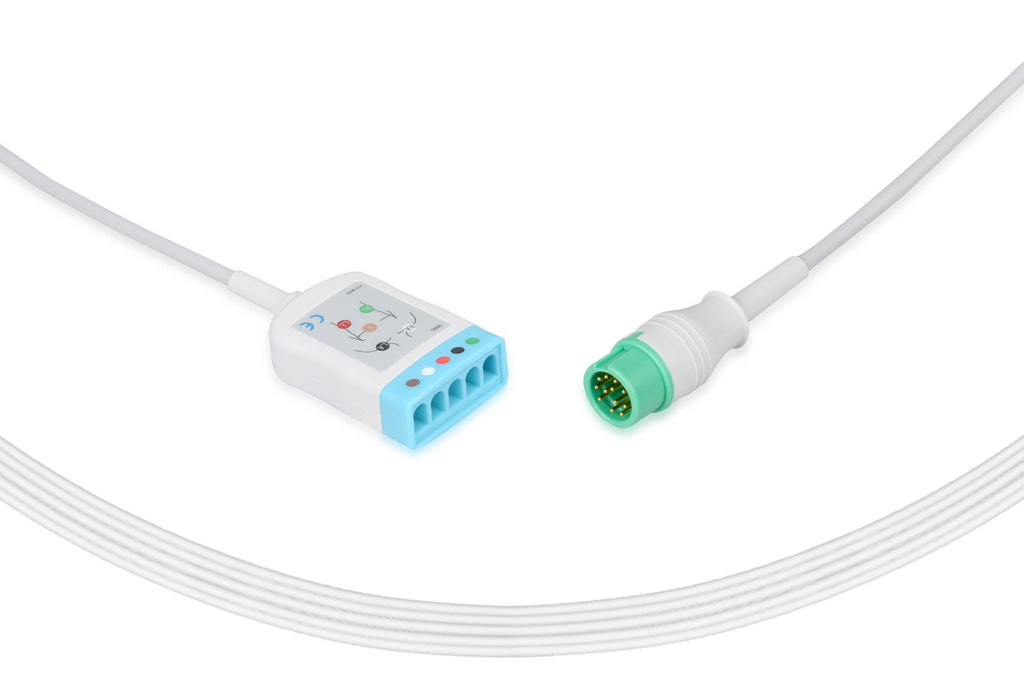

Mindray ECG Trunk Cable 0010-30-42719, 5 lead, 2.5m, Mindray, AHA, Reusable

OEM Part Number Cross References:

Manufacturer

OEM Part #

Coriton

EV6201

Mindray > Datascope

0010-30-42719

Compatibility:

Manufacturer

Model

Edan

iM20

Mindray > Datascope

Beneheart D6; BeneView T5; BeneView T8; DPM6; DPM7; iPM-9800; MEC 1000; MPM; Passport 12; Passport 8; PM5000; PM6000; T8; BeneView T1

Mindray

BeneView T1; BeneView T5; BeneView T8; Advisor; Passport 8; Passport 12; Panorama Telepack; Passport 2; Passport V; Spectrum; Spectrum OR; Passport V12; Passport Trio; Tel-200; IMEC8; IMEC10; IMEC12; IPM8; IPM10; IPM12

Penlon InterMed

All

Technical Specifications:

Category

ECG Trunk Cables

Regulatory compliance

CE, FDA, Anvisa, MDSAP, ANSI/AAMI EC53, ISO 10993 series

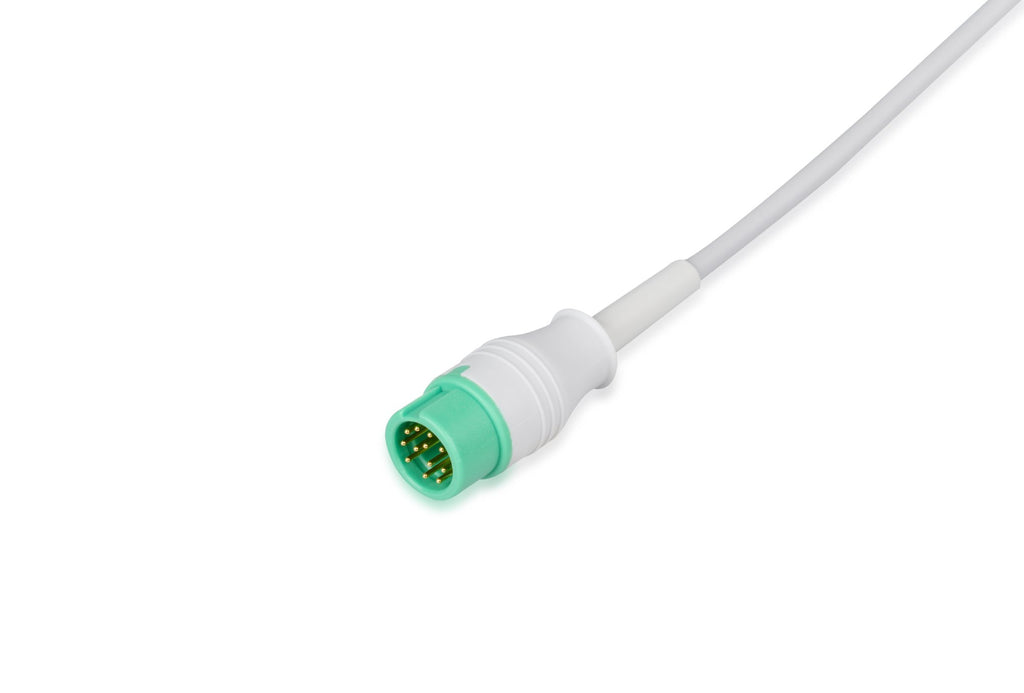

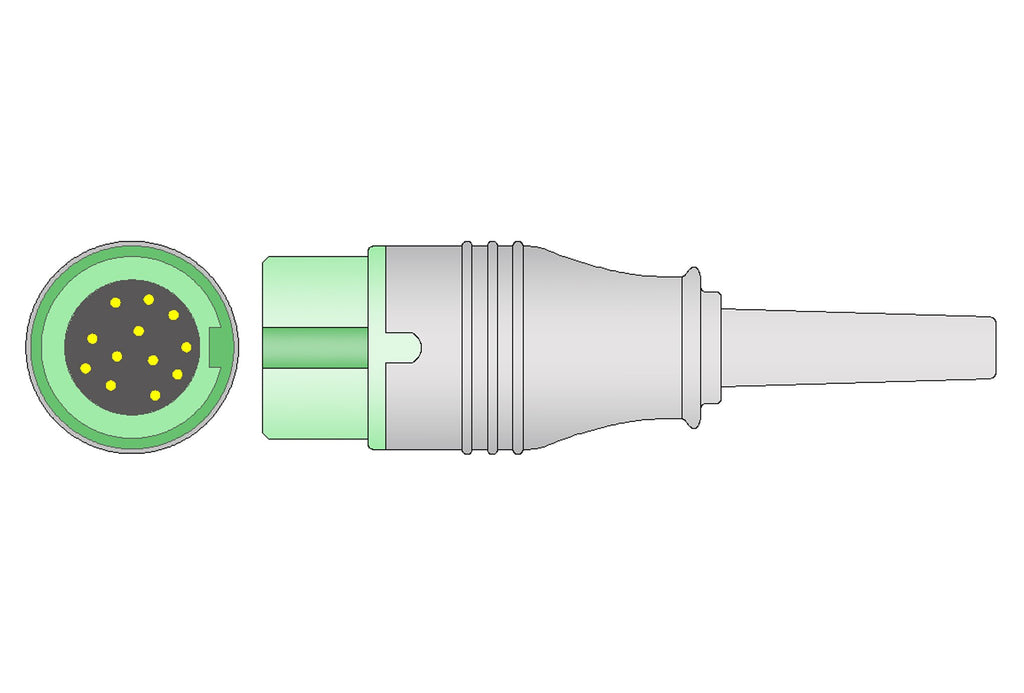

Monitor End Connector

Round 12-pin, Green

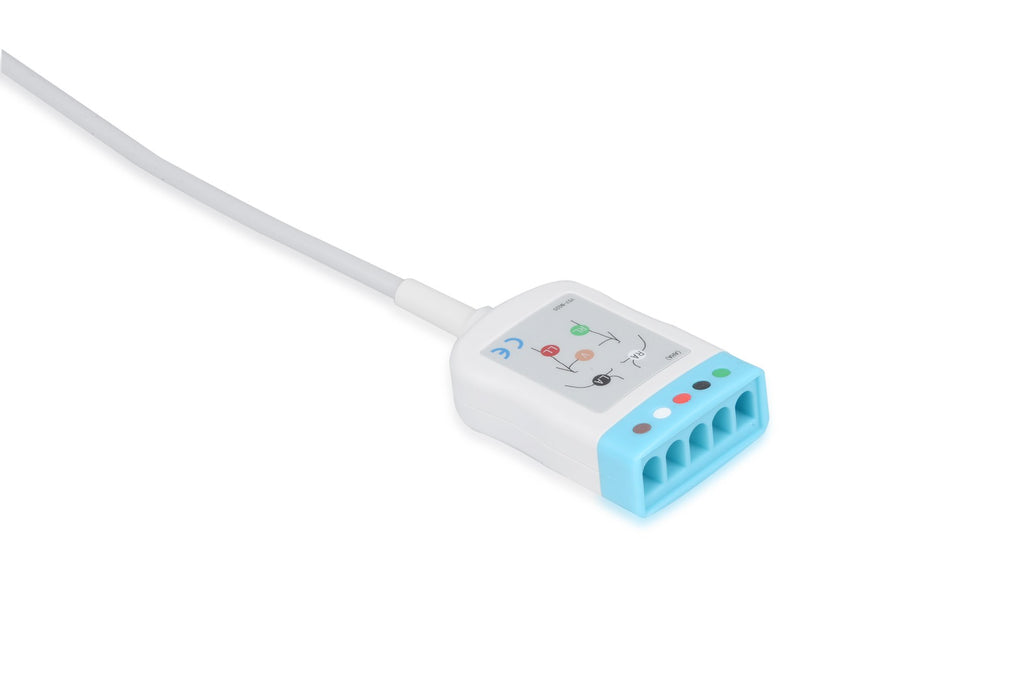

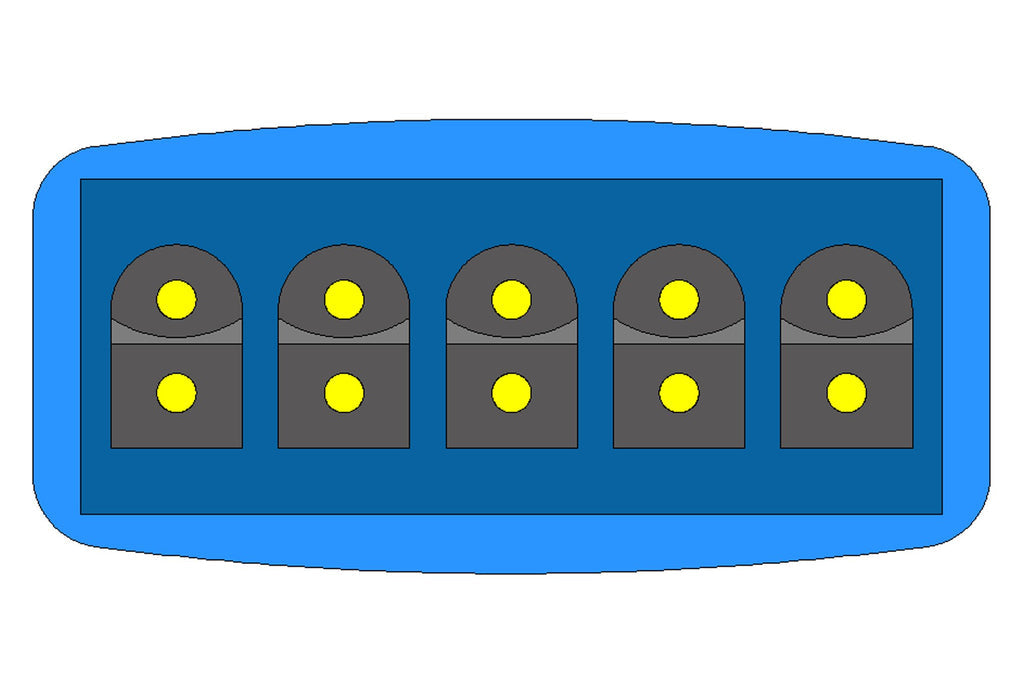

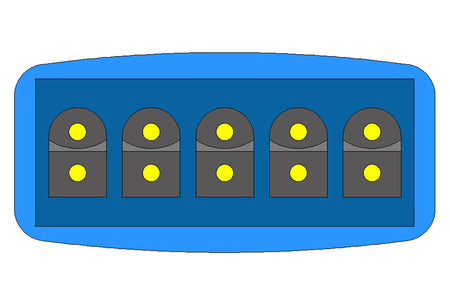

Lead Wire End Connector

Mindray 5-pin

Latex-free

Yes

Trunk Cable Color

Gray

Trunk Cable Diameter

5.0mm

Trunk Cable Length

8ft

Trunk Cable Material

TPU Jacket

Color Coding

AHA

Lead Number

5 Leads

Packaging Type

Bag

Packaging Unit

1

Package Weight

162g

Warranty

6 months
